LVF252A12-R47x-N, LVFxxxxxx Sealed Power Inductors

LVF252A12-R47x-N Description

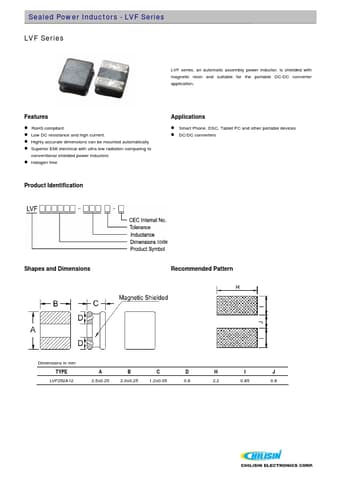

www.DataSheet.co.kr Sealed Power Inductors - LVF Series LVF Series LVF series, an automatic assembly power inductor, is shielded with magnetic resin.

LVF252A12-R47x-N Features

* RoHS compliant
* Low DC resistance and high current.
* Highly accurate dimensions can be mounted automatically
* Superior EMI electrical with ultra low radiation comparing to conventional shielded power inductors

LVF252A12-R47x-N Applications

* Smart Phone, DSC, Tablet PC and other portable devices DC/DC converters Product Identification Shapes and Dimensions Recommended Pattern Dimensions in mm TYPE LVF252A12 A 2.5±0.25 B 2.0±0.25 C 1.2±0.05 D 0.8 H 2.2 I 0.85 J 0.8 Datasheet pdf - http://www. DataSheet4U. net/ www. DataShe

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LVF252A12-R47x-N, LVFxxxxxx. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LVF252A12-R47x-N, LVFxxxxxx
Manufacturer
Chilisin Electronics
File Size
303.30 KB
Datasheet
LVFxxxxxx_ChilisinElectronics.pdf
Description
Sealed Power Inductors
Note
This datasheet PDF includes multiple part numbers: LVF252A12-R47x-N, LVFxxxxxx.
Please refer to the document for exact specifications by model.
