SCDS105R SMD Shielded Power Inductors

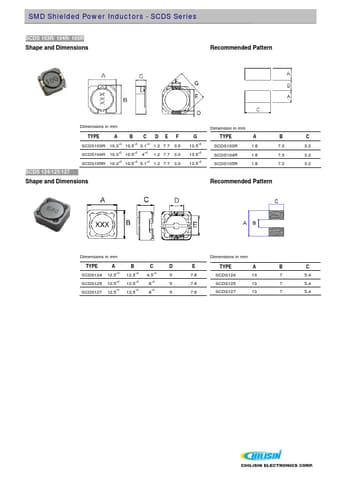

SMD Shielded Power Inductors - SCDS Series SCDS 103R/ 104R/ 105R Shape and Dimensions Recommended Pattern Dimensions in mm Dimension in mm TYPE A B C DE F G TYPE A B C SCDS103R 10.3+0 10.5+0 3.1+0 1.2 7.7 3.0 13.5+0 SCDS103R 1.6 7.3 3.2 SCDS104R 10.3+0 10.5+0 4+0 1.2 7.7 3.0 13.5+0 SCDS104R 1.6 7.3 3.2 SCDS105R 10.3+0 10.5+0 5.1+0 1.2 7.7 3.0 13.5+0 SCDS105R 1.6 7.3 3.2 SCDS 124/125/127 Shape and Dimensions Recommended Pattern Dimensions in mm Dimensions in mm TY.

SCDS103R-Chilisin.pdf

This datasheet PDF includes multiple part numbers: SCDS105R, SCDS103R. Please refer to the document for exact specifications by model.
SCDS105R Datasheet Preview Page 2 SCDS105R Datasheet Preview Page 3

Datasheet Details

Part number:

SCDS105R, SCDS103R

Manufacturer:

Chilisin

File Size:

256.20 KB

Description:

Smd shielded power inductors.

Note:

This datasheet PDF includes multiple part numbers: SCDS105R, SCDS103R.
Please refer to the document for exact specifications by model.
