CR6235 Datasheet - Chip Rail

High Precision CC/CV Primary-Side PWM Power Switch

CR6235 Features

* Up to 5% Precision for Constant Voltage Regulation and Constant Current Regulation at Universal AC input Primary-side Sensing and Regulation Without TL431 and Opto-coupler Flyback Topology In DCM Operation Soft-start Built-in Leading Edge Blanking (LEB) Frequency Jitter to Reduce System EMI Programm

CR6235 General Description

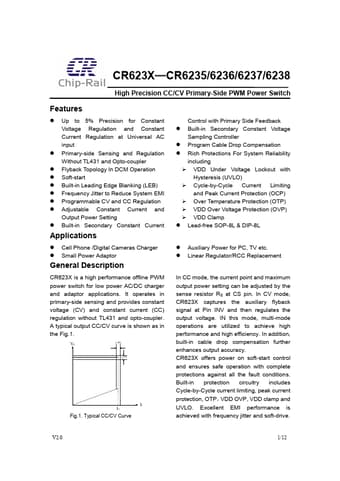

CR623X is a high performance offline PWM power switch for low power AC/DC charger and adaptor applications. It operates in primary-side sensing and provides constant voltage (CV) and constant current (CC) regulation without TL431 and opto-coupler. A typical output CC/CV curve is shown as in the Fig..

CR6235 Datasheet (244.35 KB)

CR6235 Datasheet Preview — Preview of CR6235 PDF

Datasheet Details

Part number:

CR6235

Manufacturer:

Chip Rail

File Size:

244.35 KB

Description:

High precision cc/cv primary-side pwm power switch.
