CST6206 Datasheet - ChipSourceTek

300mA Low Power LDO

CST6206 Features

* Low power consumption

* Low voltage drop

* Low temperature coefficient 300mA Low Power LDO

* Low Quiescent Current: 3uA at 6V

* Output voltage accuracy: tolerance ±2% Applications

* Battery-powered equipment

* Reference voltage sources

* Cameras,video cameras

CST6206 General Description

6206 series are a highly precise, lower consumption, 3 terminal,positive voltage regulators manufactured using CMOS and laser k trimming technologies. The series provides large currents with a significantly small dropout e voltage. T The 6206 consists of a current limiter circuit, a driver transis.

CST6206 Datasheet (840.73 KB)

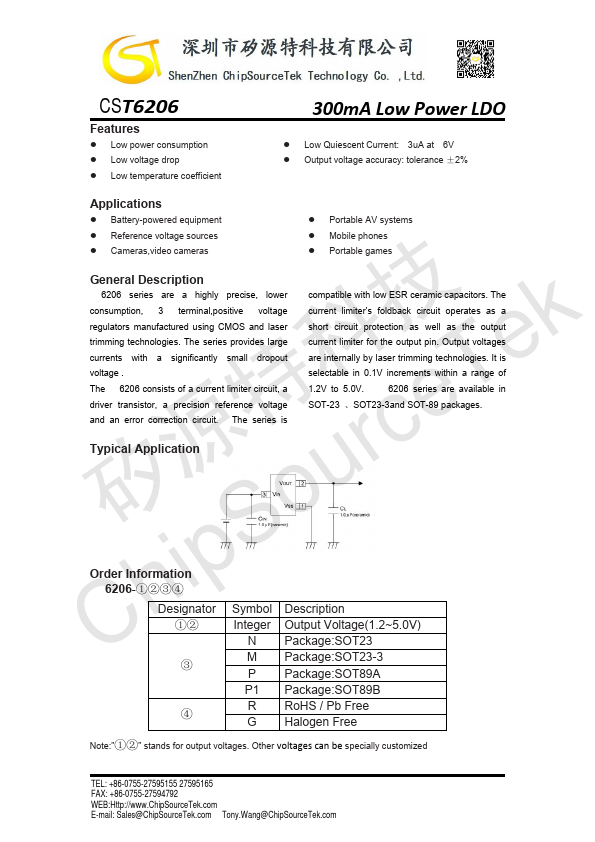

CST6206 Datasheet Preview — Preview of CST6206 PDF

Datasheet Details

Part number:

CST6206

Manufacturer:

ChipSourceTek

File Size:

840.73 KB

Description:

300ma low power ldo.
