MX3401, MX3401-ChipSourceTek - P-Channel Enhancement Mode Power MOSFET

ChipSourceTek

📥 Download Datasheet

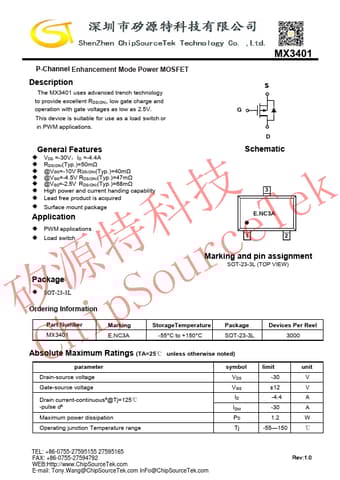

MX3401 Datasheet Preview — This datasheet PDF includes multiple part numbers: MX3401, MX3401-ChipSourceTek. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MX3401, MX3401-ChipSourceTek
Manufacturer	ChipSourceTek
File Size	797.50 KB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	MX3401-ChipSourceTek_removed.pdf
Note	This datasheet PDF includes multiple part numbers: MX3401, MX3401-ChipSourceTek. Please refer to the document for exact specifications by model.

MX3401 Product details

Description

The MX3401 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

Features

Schematic.
VDS =-30V，ID =-4.4A.
RDS(ON)(Typ. )=50mΩ.
@VGS=-10V RDS(ON)(Typ. )=40mΩ.
@VGS=-4.5V RDS(ON)(Typ. )=47mΩ.
@VGS=-2.5V RDS(ON)(Typ. )=68mΩ.
High power and current handing capability.
Lead free product is acquired k.
Surface mount package e.
