Datasheet Details
- Part number
- MX4606
- Manufacturer
- ChipSourceTek
- File Size
- 1.55 MB
- Datasheet
- MX4606-ChipSourceTek.pdf
- Description
- 30V Complementary MOSFET

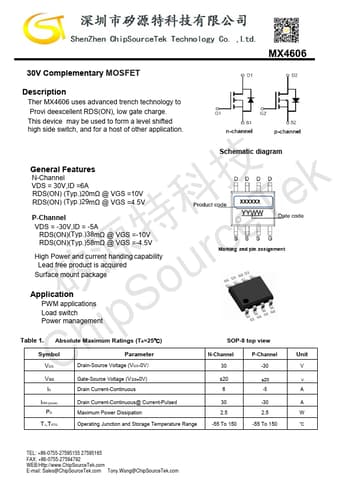

MX4606 Description
30V Complementary MOSFET .
Ther MX4606 uses advanced trench technology to Provi deexcellent RDS(ON), low gate charge.
MX4606 Features
* N-Channel
VDS = 30V,ID =6A k RDS(ON) (Typ. )20mΩ @ VGS =10V
RDS(ON) (Typ. )29mΩ @ VGS =4.5V
e P-Channel T VDS = -30V,ID = -5A
RDS(ON)(Typ. )38mΩ @ VGS =-10V
e RDS(ON)(Typ. )58mΩ @ VGS =-4.5V rc High Power and current handing capability
Lead free product is acquired
Surface mount package
ou Applica
MX4606 Applications
* S Load switch Power management
ip Table 1. Absolute Maximum Ratings (TA=25℃)
h Symbol CVDS
Parameter Drain-Source Voltage (VGS=0V）
XXXXXX
SOP-8 top view
N-Channel 30
P-Channel -30
Unit
V
VGS
Gate-Source Voltage (V DS=0V)
ID
Drain Current-Continuous
±20
±20
V
6
-5
A
IDM (pluse) PD
