NS4168 Datasheet - ChipSourceTek

digital input mono class D audio power amplifier

NS4168 Features

* Output Power Po:2.5W(VDD=5V, RL=4Ω)

* Operating Voltage:3.0V～5.5V

* 0.2%THD+N（VDD=5V, RL=4Ω, Po=1W）

* 80% efficiency (VDD=5V, RL=4Ω, Po=2.5W)

* Default 12S serial digital audio input interface

* Supports wide range sampling rate: 8kHz~96kHz.

* Left or right channel is a

NS4168 General Description

NS4168 is a mono class D audio power amplifier with I2S serial digital audio input and NCN output. It has built-in digital-to-analog converter (DAC) and multistage Class D modulator for excellent audio performance. Using the NS4168's I2S digital audio serial interface to transmit to the amplifier, .

NS4168 Datasheet (1.30 MB)

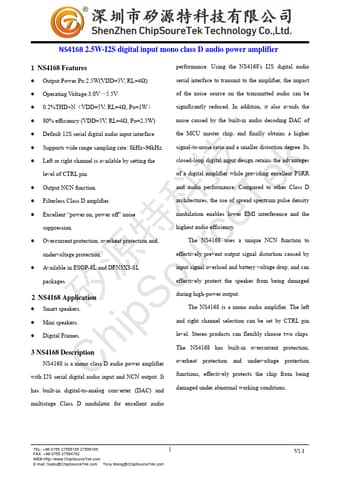

NS4168 Datasheet Preview — Preview of NS4168 PDF

Datasheet Details

Part number:

NS4168

Manufacturer:

ChipSourceTek

File Size:

1.30 MB

Description:

Digital input mono class d audio power amplifier.
