TRSP5040A - OTP-type Speech IC

Datasheet Summary

Description

Power input of I/O port.

Ground input except PWM block power.

It could be double bonded with VPS pad.

📥 Download Datasheet

Datasheet preview – TRSP5040A

Datasheet Details

Part number TRSP5040A
Manufacturer ChipSourceTek
File Size 1.11 MB
Description OTP-type Speech IC
Datasheet download datasheet TRSP5040A Datasheet
Additional preview pages of the TRSP5040A datasheet.

📁 Similar Datasheet

  • TRS-12VDC-SB-L15 - Relay (TTi)
  • TRS-24VDC-SB-L15 - Relay (TTi)
  • TRS-32100-CXX0G - CWDM 5V / 155 Mbps RoHS Compliant Optical Single-Mode Transceiver (Optoway Technology)
  • TRS-32100F-CXX0G - CWDM 5V / 155 Mbps RoHS Compliant Optical Single-Mode Transceiver (Optoway Technology)
  • TRS-32100T-CXX0G - CWDM 5V / 155 Mbps RoHS Compliant Optical Single-Mode Transceiver (Optoway Technology)
  • TRS-32120-CXX0G - CWDM 5V / 155 Mbps RoHS Compliant Optical Single-Mode Transceiver (Optoway Technology)
  • TRS-3280-CXX0G - CWDM 5V / 155 Mbps RoHS Compliant Optical Single-Mode Transceiver (Optoway Technology)
  • TRS-3280F-CXX0G - CWDM 5V / 155 Mbps RoHS Compliant Optical Single-Mode Transceiver (Optoway Technology)
  • TRS-3280T-CXX0G - CWDM 5V / 155 Mbps RoHS Compliant Optical Single-Mode Transceiver (Optoway Technology)
  • TRS-3VDC-SB-L15 - Relay (TTi)
Other Datasheets by ChipSourceTek

Full PDF Text Transcription

Click to expand full text

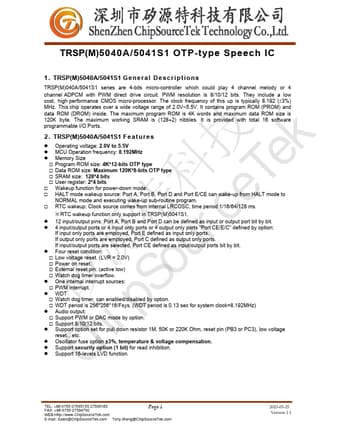

ChipSourceTek TRSP(M)5040A/5041S1 OTP-type Speech IC 1 . TRSP(M)5040A/5041S1 G e n e r a l D e s c r i p t i o n s TRSP(M)040A/5041S1 series are 4-bits micro-controller which could play 4 channel melody or 4 channel ADPCM with PWM direct drive circuit. PWM resolution is 8/10/12 bits. They include a low cost, high performance CMOS micro-processor. The clock frequency of this up is typically 8.192 (±3%) MHz. This chip operates over a wide voltage range of 2.0V~5.5V. It contains program ROM (PROM) and data ROM (DROM) inside. The maximum program ROM is 4K words and maximum data ROM size is 120K byte. The maximum working SRAM is (128+2) nibbles. It is provided with total 16 software programmable I/O Ports. 2 . TRSP(M)5040A/5041S1 F e a t u r e s  Operating voltage: 2.0V to 5.
