Fixed Frequency WhiteLED Step-Up Converter

TX5121 Features

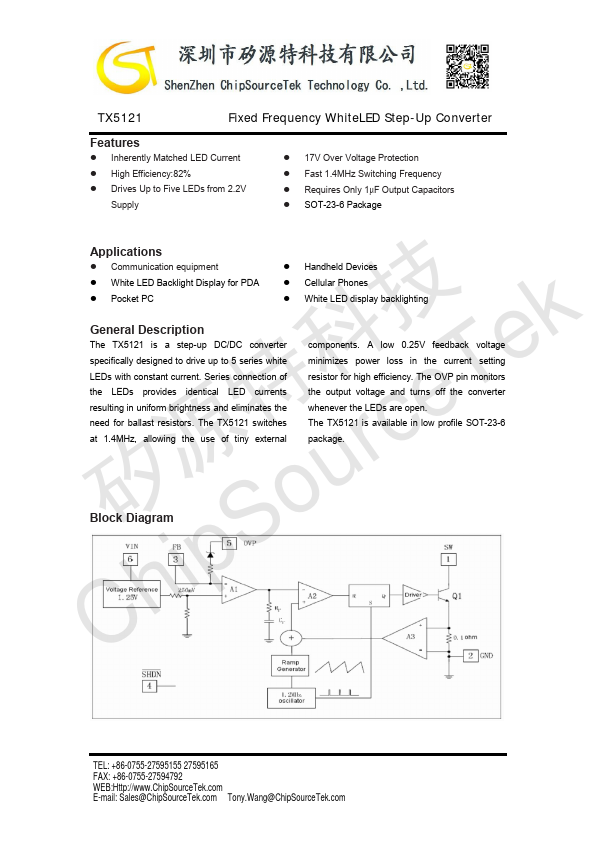

* l Inherently Matched LED Current l High Efficiency:82% l Drives Up to Five LEDs from 2.2V Supply l 17V Over Voltage Protection l Fast 1.4MHz Switching Frequency l Requires Only 1μF Output Capacitors l SOT-23-6 Package Applications l Communication equipment l Handheld Devices l White LED Backlig

TX5121 General Description

The TX5121 is a step-up DC/DC converter e specifically designed to drive up to 5 series white LEDs with constant current. Series connection of T the LEDs provides identical LED currents resulting in uniform brightness and eliminates the e need for ballast resistors. The TX5121 switches at 1.4MHz, .

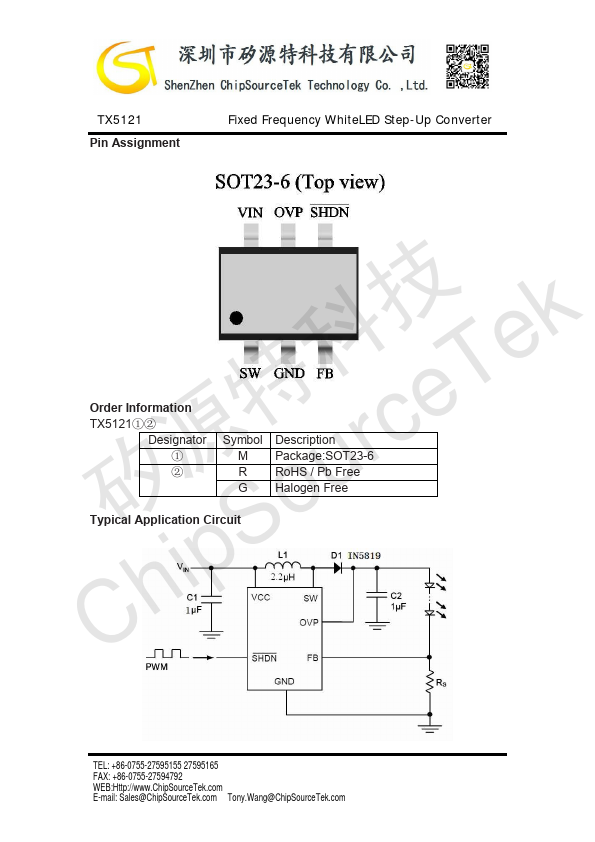

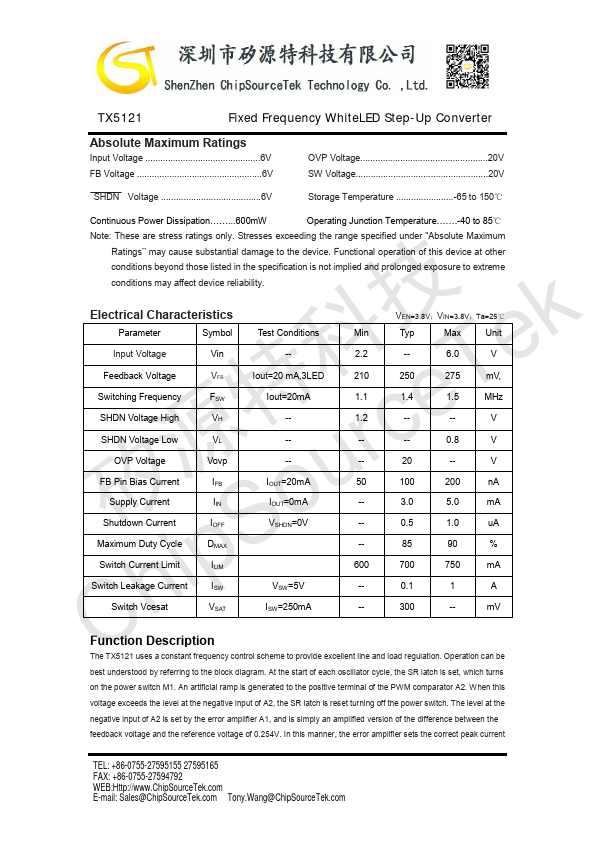

TX5121 Datasheet (517.82 KB)

TX5121 Datasheet Preview — Preview of TX5121 PDF

Datasheet Details

Part number:

TX5121

Manufacturer:

ChipSourceTek

File Size:

517.82 KB

Description:

Fixed frequency whiteled step-up converter.
