CA-IS3050W

Isolated CAN Transceivers

CA-IS3050W Features

* Meets the ISO 11898-2 physical layer standards

* Integrated protection increases robustness ▪ 3.75kVRMS, 5kVRMS and 7.5kVRMS withstand isolation voltage for 60s (galvanic isolation) ▪ ±150kV/μs typical CMTI ▪ ±58V fault-tolerant CANH and CANL ▪ ±30V extended common-mode input range

CA-IS3050W General Description

The CA-IS305x family of devices is galvanically-isolated controller area network (CAN) transceiver that has superior isolation and CAN performance to meet the needs of the industrial applications. All devices of this family have the logic input and output buffers separated by a silicon oxide (SiO2).

CA-IS3050W Datasheet (1.37 MB)

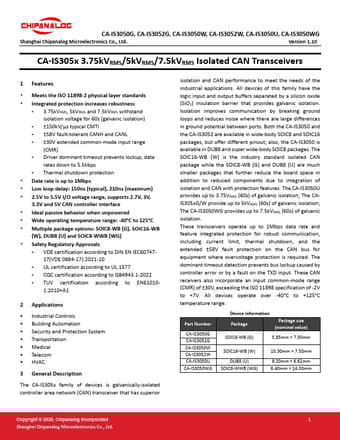

Preview of CA-IS3050W PDF

Datasheet Details

Part number:

CA-IS3050W

Manufacturer:

Chipanalog

File Size:

1.37 MB

Description:

Isolated can transceivers.
CA-IS3050G, CA-IS3052G, CA-IS3050W, CA-IS3052W, CA-IS3050U, CA-IS3050WG Shanghai Chipanalog Microelectronics Co., Ltd. Version 1.10 CA-IS305x 3.75k.
