CA-IS3050CU, CA-IS3050CG - CAN Transceivers

CA-IS3050CU Description

CA-IS3050CG, CA-IS3052CG, CA-IS3050CW, CA-IS3052CW, CA-IS3050CU Shanghai Chipanalog Microelectronics Co., Ltd.Version 1.00 CA-IS305xC 3.75kVRMS/5k.
The CA-IS305xC family of devices is galvanically-isolated controller area network (CAN) transceiver that has superior Copyright © 2024, Chipanalog In.

CA-IS3050CU Features

* Meets the ISO 11898-2 physical layer standards
* Integrated protection increases robustness ▪ 3.75kVRMS (DUB8) or 5kVRMS (SOIC8-WB/SOIC16WB) withstand isolation voltage for 60s (galvanic isolation) ▪ ±150kV/μs typical CMTI ▪ ±52V fault-tolerant CANH and CANL ▪ ±30V extended common-

CA-IS3050CU Applications

* Industrial Controls
* Building Automation
* Security and Protection System
* Transportation
* Medical
* Telecom
* HVAC isolation and CAN performance to meet the needs of the industrial applications. All devices of this family have the logic

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CA-IS3050CU, CA-IS3050CG. Please refer to the document for exact specifications by model.

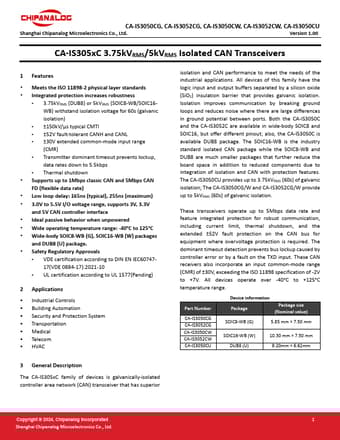

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CA-IS3050CU, CA-IS3050CG
Manufacturer
Chipanalog
File Size
1.19 MB
Datasheet
CA-IS3050CG-Chipanalog.pdf
Description
CAN Transceivers
Note
This datasheet PDF includes multiple part numbers: CA-IS3050CU, CA-IS3050CG.
Please refer to the document for exact specifications by model.
