CB2401

CMOS 2.4GHZ ZIGBEE/ISM TRANSMIT/RECEIVE FEM

CB2401 Features

* TXEN RXEN GND GND APPLICATIONS R

* 2.4GHz ZigBee High Power Single-Chip, SingleE Die RF Front-End IC

* Combined TX / RX Transceiver Port and Single T Antenna Port

* 2.4GHz Transmit High Power Amplifier with LowPass Harmonic Filter T

* Low Noise Amplifier

* Transmit / Receive S

CB2401 General Description

The CB2401 is a fully integrated, single-chip, single-die RF Front-end Integrated Circuit. which incorporates all the RF functionality needed for IEEE 802.15.4/ZigBee, wireless sensor network, and any other wireless systems in the 2.4GHz ISM band. The CB2401 architecture integrates the PA, LNA, Tra.

CB2401 Datasheet (1.15 MB)

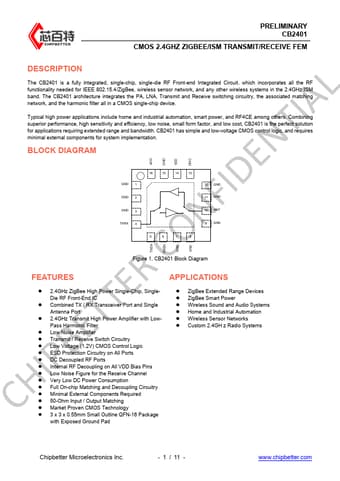

CB2401 Datasheet Preview — Preview of CB2401 PDF

Datasheet Details

Part number:

CB2401

Manufacturer:

Chipbetter

File Size:

1.15 MB

Description:

Cmos 2.4ghz zigbee/ism transmit/receive fem.
