CB2402

2.4GHZ WLAN TRANSMIT/RECEIVE FEM

CB2402 Features

* R

* 2.4GHz ISM, Single Chip, Single-Die RF Front- End IC E

* Separate TX and RX Transceiver Port and Single Antenna Port T

* 2.4GHz Power Amplifier with Low-Pass Harmonic Filter T

* Low Noise Amplifier

* Transmit / Receive Switch Circuitry E

* High Transmit Signal Linearity M

CB2402 General Description

The CB2402 is a fully integrated, single-chip, single die RF Front-end Integrated Circuit. which incorporates all the RF functionality needed for today’s wireless communications. The CB2402 architecture integrates the PA, LNA, Transmit and Receive switching circuitry, the associated matching netwo.

CB2402 Datasheet (1.25 MB)

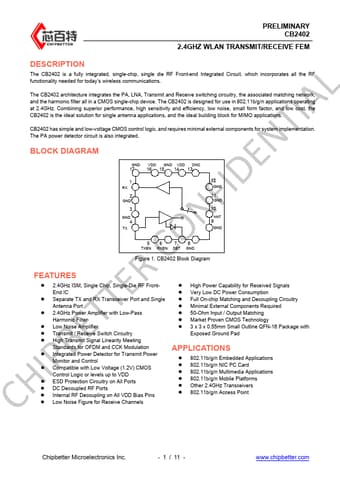

CB2402 Datasheet Preview — Preview of CB2402 PDF

Datasheet Details

Part number:

CB2402

Manufacturer:

Chipbetter

File Size:

1.25 MB

Description:

2.4ghz wlan transmit/receive fem.
