CB5717

5 GHz WLAN Front-End Module

CB5717 Features

* T

* Integrated high performance 5GHz PA, LNA with bypass and T/R switch T

* Fully-matched input and output

* Integrated power detector E

* Transmit gain: 28.5dB

* Receive gain: 10dB B

* Output power: +20dBm @ 1.8% EVM, VHT80/MCS9, 5V IP

* Output power: +21dBm @ 3% EVM, HT4

CB5717 General Description

CB5717 is a highly integrated RF Front-End Integrated Circuit which incorporates key RF functionality needed for IEEE 802.11a/n/ac WLAN systems operating in the 5.15-5.9GHz range. CB5717 integrates a high-efficiency high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the as.

CB5717 Datasheet (1.35 MB)

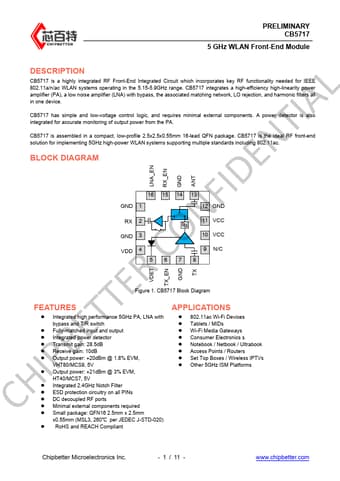

Preview of CB5717 PDF

Datasheet Details

Part number:

CB5717

Manufacturer:

Chipbetter

File Size:

1.35 MB

Description:

5 ghz wlan front-end module.
