CB6318 Datasheet, Amplifier, Chipbetter

CB6318 Features

  • Amplifier
  • Wide instantaneous signal bandwidth: 100 MHz C
  • High efficiency: PAE = 22%~23% @ +28 dBm
  • High gain: 36 dB
  • Excellent input and output return loss:

PDF File Details

Part number:

CB6318

Manufacturer:

Chipbetter

File Size:

1.24MB

Download:

📄 Datasheet

Description:

Wide instantaneous bandwidth high-efficiency power amplifier. CB6318 is a highly efficient, wide instantaneous bandwidth, fully input/output matched power amplifier (PA) with high gain and linear

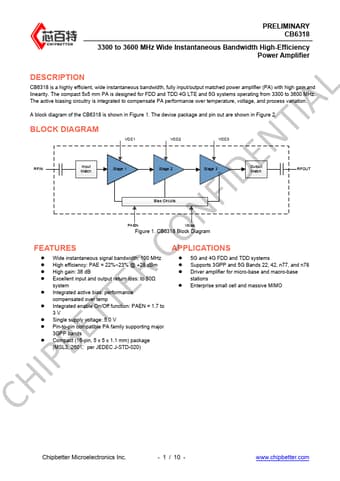

Datasheet Preview: CB6318 📥 Download PDF (1.24MB)
Page 2 of CB6318 Page 3 of CB6318

CB6318 Application

  • Applications
  • 5G and 4G FDD and TDD systems
  • Supports 3GPP and 5G Bands 22, 42, n77, and n78
  • Driver amplifier for micro-
