CB664 Datasheet - Cypress Semiconductor

I2C Clock Distribution Buffer

CB664 Features

* 7 output buffer for high clock fanout applications. 2 Output may be individually disabled with I C VDD = 3.3 volts Output frequency range 10 MHz to 100 MHz

CB664 General Description

The device is a high fanout system clock buffer. Its primary application is to distribute clocks needed to support a wide range of applications such as SDRAM clocks. This device provides low skew distribution clock heavily loaded. One important application of this component is where long traces are .

CB664 Datasheet (86.83 KB)

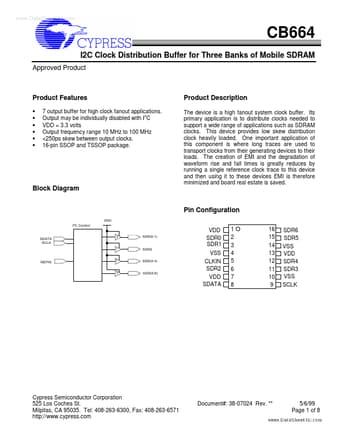

CB664 Datasheet Preview — Preview of CB664 PDF

Datasheet Details

Part number:

CB664

Manufacturer:

Cypress Semiconductor

File Size:

86.83 KB

Description:

I2c clock distribution buffer.
