CC2400

2.4-GHz Low-Power RF Transceiver

CC2400 Features

* True single-chip 2.4 GHz RF transceiver with baseband modem

* 10 kbps, 250 kbps and 1 Mbps overthe-air data rates

* Low current consumption (RX: 24 mA)

* Low core supply voltage (1.8 V)

* Programmable output power

* No external RF switch / filter ne

CC2400 General Description

The CC2400 is a true single-chip 2.4 GHz RF transceiver designed for low-power and low-voltage wireless applications. The RF transceiver is integrated with a baseband modem supporting data rates up to 1 Mbps. The CC2400 is a low-cost, highly integrated solution enabling robust wireless communication.

CC2400 Datasheet (750.89 KB)

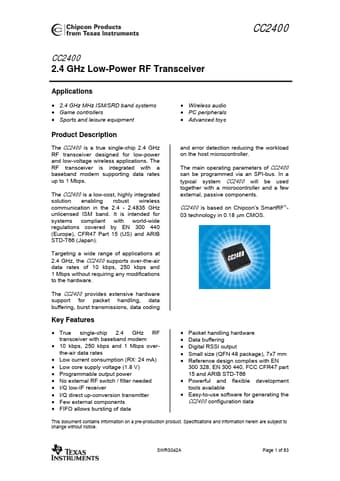

Preview of CC2400 PDF

Datasheet Details

Part number:

CC2400

Manufacturer:

Chipcon

File Size:

750.89 KB

Description:

2.4-ghz low-power rf transceiver.
CC2400 CC2400 2.4 GHz Low-Power RF Transceiver Applications

* 2.4 GHz MHz ISM/SRD band systems

* Game controllers

* Sports a.
