CE6219 Datasheet - Chipower

CE6219 - Low Dropout Voltage 300mA CMOS LDO Regulator

Low Dropout Voltage 300mA CMOS LDO Regulator Low Dropout Voltage 300mA CMOS LDO Regulator CE6219 Series CE6219 Series INTRODUCTION The CE6219 Series are a group of positive voltage regulators manufactured by CMOS technologies with high ripple rejection, extremely low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small.

Thus the CE6219 series are very suitable for the battery-powered equi

CE6219 Features

* z Output Current: 300mA z Output Voltage Range: 0.9V ~ 5.0V, (selectable in 0.1V steps) z High Accuracy: ±2%(Typ.) z Low Dropout Voltage: 150mV@100mA(3.0V Typ.) z Excellent Line Regulation: 0.1%/V z Built-in Current Limiter z Built-in Short Circuit Protection z Static safety: 2KV@HBM z TC: 100ppm/℃

CE6219-Chipower.pdf

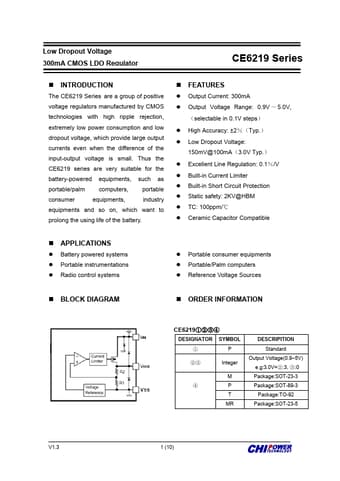

Preview of CE6219 PDF
CE6219 Datasheet Preview Page 2 CE6219 Datasheet Preview Page 3

Datasheet Details

Part number:

CE6219

Manufacturer:

Chipower

File Size:

374.72 KB

Description:

Low dropout voltage 300ma cmos ldo regulator.
