CE6301

18V Low Current Consumption 300mA CMOS Voltage Regulator

CE6301 Features

* z Low Quiescent Current: 2μA z Operating Voltage Range: 2.5V~18V z Output Current: 300mA z Low Dropout Voltage: 160mV@100mA(VOUT=3.3V) z Output Voltage: 1.2~ 5.0V z High Accuracy: ±2%(Typ.) z High Power Supply Rejection Ratio: 70dB@1kHz z Low Output Noise: 27xVOUT μVRMS (10Hz~100kHz) z Excellent Lin

CE6301 General Description

① A Standard ②③ ④ Integer M/ MC/ MY MF/MR P/PT/PL T/TA/TB Output Voltage e.g.1.8V=②:1, ③:8 Package:SOT-23-3 Package:SOT-23-5 Package:SOT-89-3 Package:TO-92 1   18V Low Current Consumption 300mA CMOS Voltage Regulator

* PIN CONFIGURATION SOT-23-3 SOT-23-5 SOT-89-3 CE6301Series TO.

CE6301 Datasheet (563.03 KB)

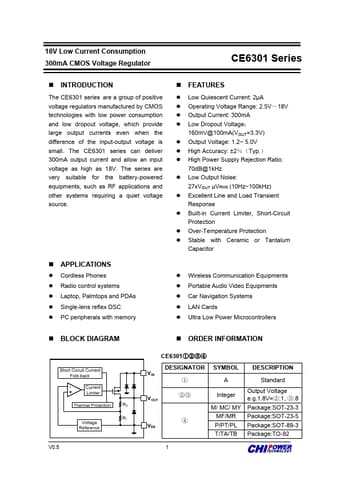

Preview of CE6301 PDF

Datasheet Details

Part number:

CE6301

Manufacturer:

Chipower

File Size:

563.03 KB

Description:

18v low current consumption 300ma cmos voltage regulator.
  18V Low Current Consumption 300mA CMOS Voltage Regulator CE6301Series 18V Low Current Consumption 300mA CMOS Voltage Regulator CE6301 Series
