CE8320 Datasheet - Chipower

CE8320 4A Boost Regulator

High Efficiency 1MHz, 4A Boost Regulator CE8320 Series INTRODUCTION: The CE8320 is a high efficiency boost switching regulator especially designed for single cell Li-ion /Li-Pol battery powered applications. It generates an output voltage of up to 5.5V from an input voltage as low as 1.6V. Ideal for applications where space is limited, it switches at 1MHz, allowing the use of tiny, low cost and low profile external components, minimizes solution footprint. Its internal 4A, 70mΩ NMOS .

CE8320 Features

* z 1MHz Switching Frequency z Built-in 70mΩ N-CH Power MOSFET Switch z PWM/PFM Auto Switching Maintains High Efficiency Overall Load Current Range z Up to 90% Efficiency: Delivers 2A@5V from Single Li Cell z

CE8320-Chipower.pdf

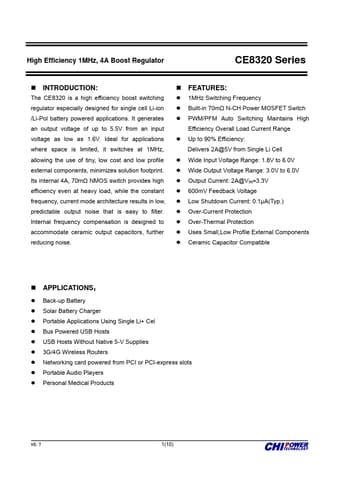

Preview of CE8320 PDF
CE8320 Datasheet Preview Page 2 CE8320 Datasheet Preview Page 3

Datasheet Details

Part number:

CE8320

Manufacturer:

Chipower

File Size:

281.90 KB

Description:

4a boost regulator.
