CE8510 Synchronous Step-Down Converter

2A,4.5V-18V Input,500kHz Synchronous Step-Down Converter CE8510 Series INTRODUCTION: The CE8510 is a constant frequency, current mode step-down converter. The device integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. It is ideal for powering portable equipment that runs from a single cell Lithium-Ion (Li+) battery. The output voltage can be regulated as low as 0.6V. The CE8510 can also run at 100% duty cycle for low dropout operat.

CE8510 Features

* High efficiency :Up to 96%

* 500kHz Constant Frequency Operation

* 2A Output Current

* No Schottky Diode Required

* 4.5V to 18V Input Voltage Range

* Output Voltage as Low as

CE8510 Datasheet (409.87 KB)

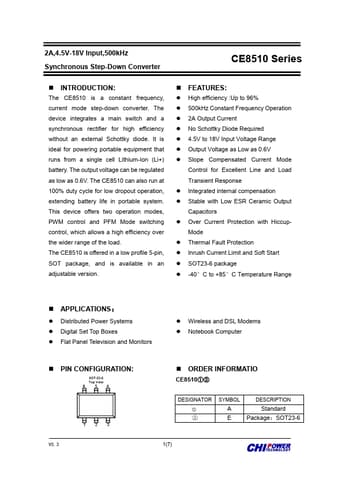

CE8510 Datasheet Preview — Preview of CE8510 PDF

Datasheet Details

Part number:

CE8510

Manufacturer:

Chipower

File Size:

409.87 KB

Description:

Synchronous step-down converter.
