CE8809 Ultra-Small Built-In Delay High-Precision Voltage Detector

Ultra-Small Package Built-In Delay High-Precision Voltage Detector CE8809 Series Ultra-Small Built-In Delay High-Precision Voltage Detector CE8809 Series INTRODUCTION The CE8809 Series is a series of high-precision voltage detectors with a built-in delay time generator of fixed time. developed using CMOS process. The detection voltage is fixed internally, with an accuracy of ±2.0%. Internal oscillator and counter timer can delay the release signal without external parts, delay times 20.

CE8809 Features

* Ultra-low current consumption: 0.9μA@3.5V(Typ.)

* High-precision detection voltage: ±2.0%

* Hysteresis characteristics: -VDET×5%(Typ.)

* Operating voltage range: 0.95V to 7.0V

* Detection voltage: 1.5V to 6.0V (10mV step)

* Delay time: 210 ms (Typ.)

* Output forms: NMOS

CE8809 Datasheet (524.20 KB)

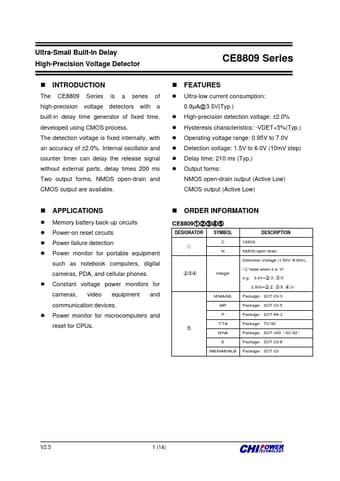

CE8809 Datasheet Preview — Preview of CE8809 PDF

Datasheet Details

Part number:

CE8809

Manufacturer:

Chipower

File Size:

524.20 KB

Description:

Ultra-small built-in delay high-precision voltage detector.
