CE8818 Low-Power Reset Circuits

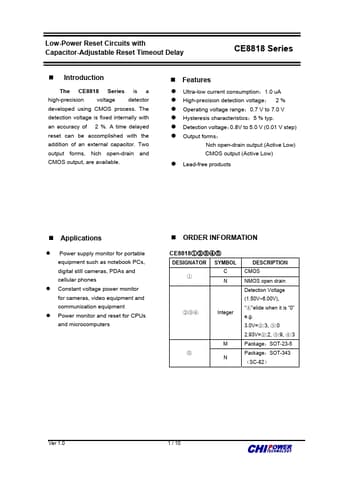

Low-Power Reset Circuits with Capacitor-Adjustable Reset Timeout Delay CE8818 Series Low-Power Reset Circuits with Capacitor-Adjustable Reset Timeout Delay CE8818 Series Introduction The CE8818 Series is a high-precision voltage detector developed using CMOS process. The detection voltage is fixed internally with an accuracy of 　2 %. A time delayed reset can be accomplished with the addition of an external capacitor. Two output forms, Nch open-drain and CMOS output, are available. .

CE8818 Features

* z Ultra-low current consumption：1.0 uA z High-precision detection voltage：　2 % z Operating voltage range：0.7 V to 7.0 V z Hysteresis characteristics：5 % typ. z Detection voltage：0.8V to 5.0 V (0.01 V step) z Output forms： Nch open-drain output (Active Low) CMOS output (Active Low) z Lead-free produc
