AP8012 - GREEN POWER OFF LINE SMPS PRIMARY SWITCHE

Datasheet Summary

Features

  • z 85v to 265v wide range AC voltage input z A 730v MOSFET on the same silicon chip z Auto start up with high voltage current source z PWM with current mode control z 10v to 39v wide range VCC voltage z Fixed 55KHz switching frequency z Automatic skip cycle mode in low load condition. z Over temperature, over current and over voltage protection z Auxiliary under voltage lockout with hysteresis z Electromagnetic Oven power supplies z Air Conditioner power supplies z AC/DC LED Driver.

📥 Download Datasheet

Datasheet preview – AP8012

Datasheet Details

Part number AP8012
Manufacturer Chipown
File Size 268.87 KB
Description GREEN POWER OFF LINE SMPS PRIMARY SWITCHE
Datasheet download datasheet AP8012 Datasheet
Additional preview pages of the AP8012 datasheet.

📁 Similar Datasheet

  • AP8012 - AC-DC PWM CONTROLLER (AiT Semiconductor)
  • AP8012A - PWM CONTROLLER (AiT Semiconductor)
  • AP8010 - AC-DC PWM CONTROLLER (AiT Semiconductor)
  • AP8007 - AC-DC PWM CONTROLLER (AiT Semiconductor)
  • AP8022 - LOW STANDBY-POWER OFF-LINE PWM CONVERTERS (AiT Semiconductor)
  • AP8022 - Green Power Off Line SMPS Primary Switcher (ETC)
  • AP8022A - PWM CONTROLLER (AiT Semiconductor)
  • AP8022H - High-Performance Offline PWM Switching Power Supply Controller (Minos)
  • AP8024 - AC-DC PWM CONTROLLER (AiT Semiconductor)
  • AP8048A - Audio Application Processor (MVSILICON)
Other Datasheets by Chipown
  • AP8012C - Low Standby Power Offline Switching Power Supply
  • AP8012H - Low Standby-Power Off-line PWM converters
  • AP8003 - Fixed 5V Output Non-Isolated AC-DC Conversion
  • AP8022 - Low Standby-Power Off-line PWM converters
  • AP8022H - Low standby power consumption offline switching power supply
  • AP8262W - Current Mode PWM Switching Power Supply Controller
  • AP8263 - Energy-saving off-line PWM controller
  • AP8266 - Green mode PWM control chip

Full PDF Text Transcription

Click to expand full text

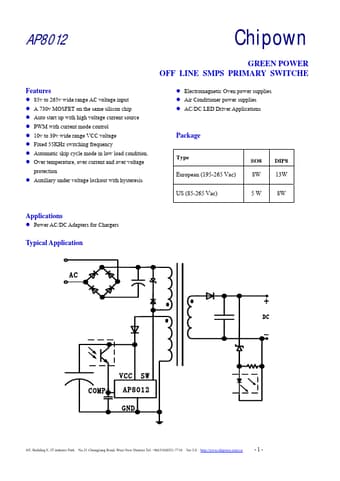

AP8012 Chipown GREEN POWER OFF LINE SMPS PRIMARY SWITCHE Features z 85v to 265v wide range AC voltage input z A 730v MOSFET on the same silicon chip z Auto start up with high voltage current source z PWM with current mode control z 10v to 39v wide range VCC voltage z Fixed 55KHz switching frequency z Automatic skip cycle mode in low load condition. z Over temperature, over current and over voltage protection z Auxiliary under voltage lockout with hysteresis z Electromagnetic Oven power supplies z Air Conditioner power supplies z AC/DC LED Driver Applications Package Type European (195-265 Vac) US (85-265 Vac) SO8 DIP8 8W 13W 5 W 8W Applications z Power AC/DC Adapters for Chargers Typical Application AC + DC - COMP VCC SW AP8012 GND 4/F, Building F, IT industry Park No.
