TP4056 Datasheet - Chipown

1A Linear Li-Ion Battery Charger

TP4056 Features

* include Battery temperature monitor, under-voltage lockout, automatic recharge and two status pins to indicate charge and charge termination. Applications

* Cellular Telephones, PDAs, MP3 /MP4 Players

* Charging Docks and Cradles

* Bluetooth 、GPS Applications Features

* No MOSFET, S

TP4056 General Description

The TP4056 is a complete constant current & constant voltage linear charger for single cell lithium-ion batteries. Its SOP package and low external component count make the TP4056 ideally suited for portable applications. Furthermore, the TP4056 is specifically designed to work within USB power spec.

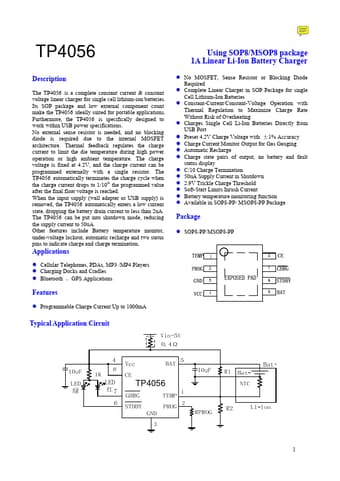

TP4056 Datasheet (768.52 KB)
