CS42416 Datasheet, Codecs, Cirrus Logic

CS42416 Features

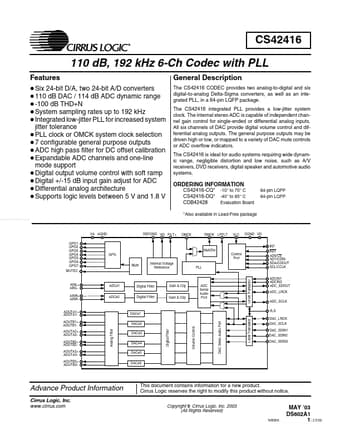

• Codecs z Six 24-bit D/A, two 24-bit A/D converters z 110 dB DAC / 114 dB ADC dynamic range z -100 dB THD+N z System sampling rates up to 192 kHz z Integrated low-jitter PLL for increased syste

PDF File Details

Part number:

CS42416

Manufacturer:

Cirrus Logic

File Size:

1.61MB

Download:

📄 Datasheet

Description:

Surround-sound codecs. The CS42416 CODEC provides two analog-to-digital and six digital-to-analog Delta-Sigma converters, as well as an integrated PLL, in a

CS42416 Application

• Applications 10 3.1 Overview 10 3.2 Analog Inputs 10 3.2.1 Line Level Inputs 10 3.2.2 External Input Filter 11 3.2.3 High Pass Filter and DC Of
