CS4200V-01L Current Sense Transformers

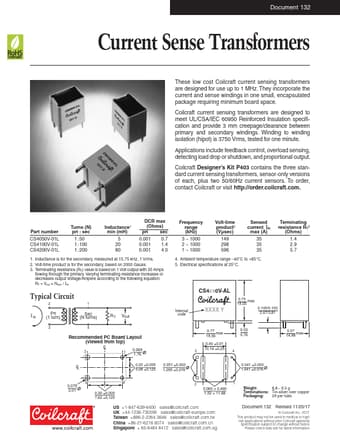

Document 132 Current Sense Transformers These low cost Coilcraft current sensing transformers are designed for use up to 1 MHz. They incorporate the current and sense windings in one small, encapsulated package requiring minimum board space. Coilcraft current sensing transformers are designed to meet UL/CSA/IEC 60950 Reinforced Insulation specification and provide 3 mm creepage/clearance between primary and secondary windings. Winding to winding isolation (hipot) is 3750 Vrms, tested for one mi.

CS4050V-01L-Coilcraft.pdf

CS4200V-01L Datasheet Preview — This datasheet PDF includes multiple part numbers: CS4200V-01L, CS4050V-01L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CS4200V-01L, CS4050V-01L

Manufacturer:

Coilcraft

File Size:

130.39 KB

Description:

Current sense transformers.

Note:

This datasheet PDF includes multiple part numbers: CS4200V-01L, CS4050V-01L.
Please refer to the document for exact specifications by model.
