CS4050V-01L, Current Sense Transformers

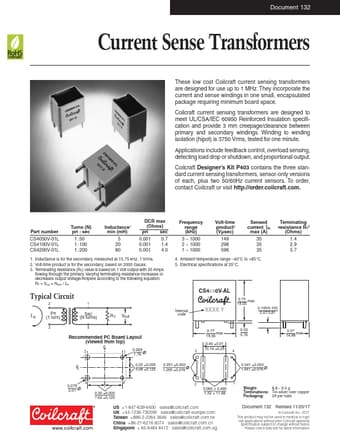

Document 132 Current Sense Transformers These low cost Coilcraft current sensing transformers are designed for use up to 1 MHz.

They incorporate the current and sense windings in one small, encapsulated package requiring minimum board space.

Coilcraft current sensing transformers are designed to meet UL/CSA/IEC 60950 Reinforced Insulation specification and provide 3 mm creepage/clearance between primary and secondary windings.

Winding to winding isolation (hipot) is 3750 Vrms, tested for one mi
