CS40N045A4 - Silicon N-Channel Power MOSFET

Description

performance and enhance the avalanche energy.

suitable for use as a load switch and PWM applications.

Features

  • Fast Switching.
  • Low ON Resistance(Rdson≤10mΩ).
  • Low Gate Charge.
  • Low Reverse transfer capacitances.
  • 100% Single Pulse avalanche energy Test.

📥 Download Datasheet

Datasheet Details

Part number CS40N045A4
Manufacturer CR Micro
File Size 581.33 KB
Description Silicon N-Channel Power MOSFET
Datasheet download datasheet CS40N045A4 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CS40N20A8 Silicon N-Channel Power MOSFET Huajing Microelectronics
CS40N20ANH Silicon N-Channel Power MOSFET Huajing Microelectronics
CS40N20FA9E Silicon N-Channel Power MOSFET Huajing Microelectronics
CS40N20FA9H Silicon N-Channel Power MOSFET Huajing Microelectronics
CS40N27 N-Channel Trench Power MOSFET CASS

Other Datasheets by CR Micro

Part Number Description
CS40N20FA9R-G Silicon N-Channel Power MOSFET
CS40N25A8R Silicon N-Channel Power MOSFET
CS40N25FA9R Silicon N-Channel Power MOSFET
CS45N06A4 Silicon N-Channel Power MOSFET
CS45N25A0R-G Silicon N-Channel Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

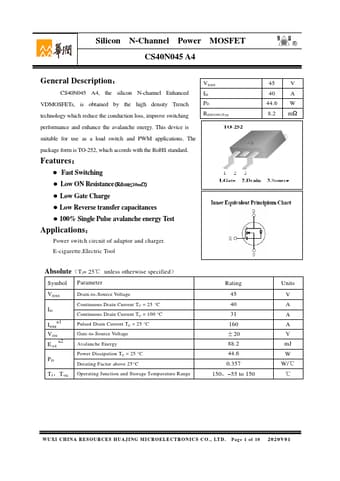

Silicon N-Channel Power MOSFET ○R CS40N045 A4 General Description： CS40N045 A4, the silicon N-channel Enhanced VDMOSFETs, is obtained by the high density Trench technology which reduce the conduction loss, improve switching VDSS ID PD RDS(ON)Typ performance and enhance the avalanche energy. This device is suitable for use as a load switch and PWM applications. The package form is TO-252, which accords with the RoHS standard. Features：  Fast Switching  Low ON Resistance(Rdson≤10mΩ)  Low Gate Charge  Low Reverse transfer capacitances  100% Single Pulse avalanche energy Test Applications： Power switch circuit of adaptor and charger. E-cigarette,Electric Tool 45 V 40 A 44.6 W 8.
