CS40N20FA9E Datasheet, Power Mosfet, Huajing Microelectronics

Silicon n-channel power mosfet

📥 Download PDF (215.77 KB)

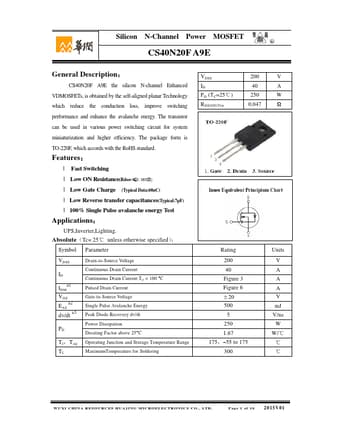

CS40N20FA9E Datasheet Preview Page 1 — Preview of CS40N20FA9E Datasheet

PDF File Details

Part number:

CS40N20FA9E

Manufacturer:

Huajing Microelectronics

File Size:

215.77 KB

Download:

📄 Download the CS40N20FA9E Datasheet PDF

Description:

Silicon n-channel power mosfet.

CS40N20F A9E the silicon N-channel Enhanced

VDMOSFETs, is obtained by the self-aligned planar Technology

which reduce the conduction loss, improve switching

performance and enhance the avalanche .

✔ CS40N20FA9E Features

l Fast Switching l Low ON Resistance(Rdson≤0.065Ω) l Low Gate Charge (Typical Data:68nC) l Low Reverse transfer capacitances(Typical:7pF) l 100% Single Pulse avalanche e

✔ CS40N20FA9E Application

UPS,Inverter,Lighting. Absolute（Tc= 25℃ unless otherwise specified）： Symbol Parameter VDSS ID IDMa1 VGS
