Part number: CS40N20FA9R-G
Manufacturer: CR Micro
File Size: 387.33KB
Download: 📄 Datasheet
Description: Silicon N-Channel Power MOSFET
l Fast Switching l Low ON Resistance(Rdson≤66mΩ) l Low Gate Charge (Typical Data:46nC) l Low Reverse transfer capacitances(Typical:28.6pF) l 100% Single Pulse avalanche .
Power switch circuit of adaptor and charger.
Absolute（TJ= 25℃ unless otherwise specified）：
Symbol Parameter
VDSS
ID I.
CS40N20F A9R, the silicon N-channel Enhanced
VDMOSFETs, is obtained by the self-aligned planar Technology
which reduce the conduction loss, improve switching
performance and enhance the avalanche energy. The transistor
can be used in various po.

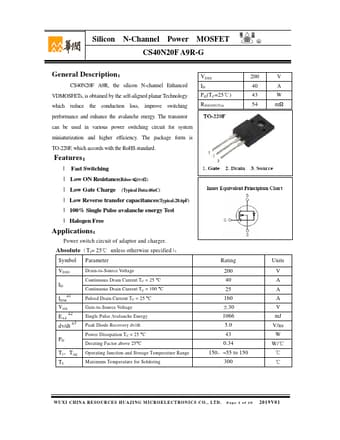

Image gallery
