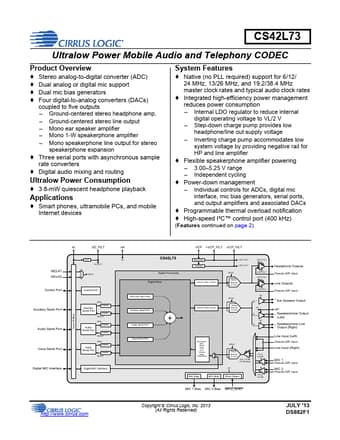

Part number: CS42L73
Manufacturer: Cirrus Logic
File Size: 2.76MB
Download: 📄 Datasheet
Description: Ultra Low Power Mobile Audio and Telephony CODEC
Native (no PLL required) support for 6/12/ 24 MHz, 13/26 MHz, and 19.2/38.4 MHz master clock rates and typical audio clock rates
Integrated high-efficiency power mana.
Smart phones, ultramobile PCs, and mobile Internet devices
System Features
Native (no PLL required) support for 6/1.
The CS42L73 is a highly integrated, low-power, audio and telephony CODEC for portable applications such as smartphones and ultramobile personal computers.
The CS42L73 features a flexible clocking architecture, allowing the device to use reference clo.
