CS5531

16-BIT AND 24-BIT ADC

CS5531 Features

* Chopper Stabilized PGIA (Programmable Gain Instrumentation Amplifier, 1x to 64x) 6 nV/√Hz @ 0.1 Hz (No 1/f noise) at 64x 500 pA Input Current with Gains >1 Delta-Sigma Analog-to-Digital Converter Linearity Error: 0.0007% FS Noise Free Resolution: Up to 23 bits Two or Four Channel Differential MUX Sc

CS5531 General Description

The CS5531/32/33/34 are highly integrated ∆Σ Analogto-Digital Converters (ADCs) which use charge-balance techniques to achieve 16-bit (CS5531/33) and 24-bit (CS5532/34) performance. The ADCs are optimized for measuring low-level unipolar or bipolar signals in weigh scale, process control, scientific.

CS5531 Datasheet (566.30 KB)

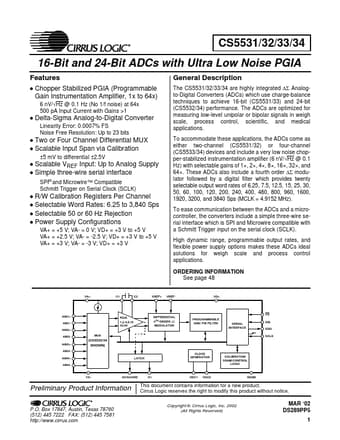

Preview of CS5531 PDF

Datasheet Details

Part number:

CS5531

Manufacturer:

Cirrus Logic

File Size:

566.30 KB

Description:

16-bit and 24-bit adc.
