CS5533-AS 16-bit and 24-bit ADC

The CS5531/32/33/34 are highly integrated  Analogto-Digital Converters (ADCs) which use charge-balance techniques to achieve 16-bit (CS5531/33) and 24-bit (CS5532/34) performance. The ADCs are optimized for measuring low-level unipolar or bipolar signals in weigh scale, process control, scientific.

CS5533-AS Features

* Chopper-stabilized PGIA (Programmable Gain Instrumentation Amplifier, 1x to 64x)

* 12 nV/Hz @ 0.1 Hz (No 1/f noise) at 64x

* 1200 pA Input Current with Gains >1 Delta-sigma Analog-to-digital Converter

* Linearity Error: 0.0007% FS

* Noise Free Resolution: Up to 23

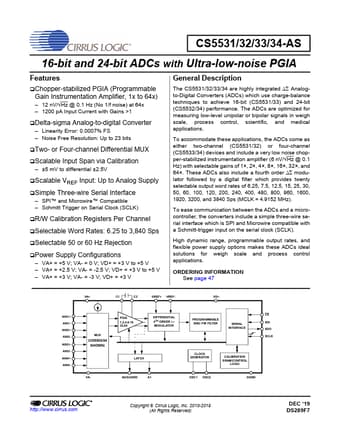

CS5531-AS-CirrusLogic.pdf

CS5533-AS Datasheet Preview — This datasheet PDF includes multiple part numbers: CS5533-AS, CS5531-AS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CS5533-AS, CS5531-AS

Manufacturer:

Cirrus Logic

File Size:

2.82 MB

Description:

16-bit and 24-bit adc.

Note:

This datasheet PDF includes multiple part numbers: CS5533-AS, CS5531-AS.
Please refer to the document for exact specifications by model.
