PA241, High Voltage Power Operational Amplifier

P r o d PA241 uct Innovation From www.DataSheet4U.com PA241 PA241 High Voltage Power Operational Amplifier .
The PA241 is a high voltage monolithic MOSFET operational amplifier which achieves performance features previously found only in hybrid designs while.

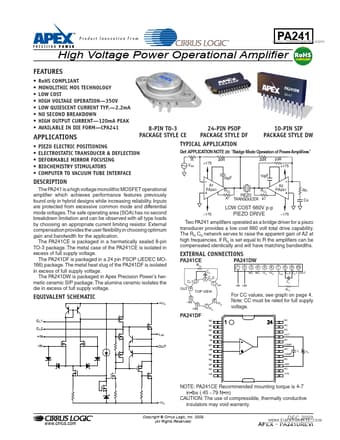

datasheet Preview Page 1 from Datasheet4u.com

PA241_CirrusLogic.pdf

PA241 Datasheet Preview — Preview of PA241 PDF

Datasheet Details

Part number:

PA241

Manufacturer:

Cirrus Logic

File Size:

784.63 KB

Description:

High Voltage Power Operational Amplifier

Features

* RoHS COMPLIANT
* MONOLITHIC MOS TECHNOLOGY
* LOW COST
* HIGH VOLTAGE OPERATION
* 350V
* LOW QUIESCENT CURRENT TYP.
* 2.2mA
* NO SECOND BREAKDOWN
* HIGH OUTPUT CURRENT
* 120mA PEAK
* AVAILABLE IN DIE FORM

Applications

* PIEZO ELECTRIC POSITIONING
* ELECTROSTATIC TRANSDUCER & DEFLECTION
* DEFORMABLE MIRROR FOCUSING
* BIOCHEMISTRY STIMULATORS
* COMPUTER TO VACUUM TUBE INTERFACE 8-PIN TO-3 24-PIN PSOP PACKAGE STYLE CE PACKAGE STYLE DF TYPICAL APPLICATION R V IN +175 20R
