PA2423U

2.4 GHz Bluetoothtm Power Amplifier

PA2423U Features

* +22.5 dBm Output Power Low current 108 mA typical @ POUT = +20 dBm CMOS Enable Interface Power-control and power-down modes 3.3 V single supply operation Thin, lead-free 6 pin QFN package Ordering Information Part Number PA2423U PA2423U-R PA2423U-EV1 Package 6 pi

PA2423U General Description

A monolithic, high-efficiency, silicon-germanium power amplifier IC, the PA2423U is designed for 2.4 GHz wireless applications, including BluetoothTM Class1 and 2.4 GHz cordless telephone applications. It delivers +22.5 dBm output power making it capable of overcoming insertion losses of up to 2.5 d.

PA2423U Datasheet (233.03 KB)

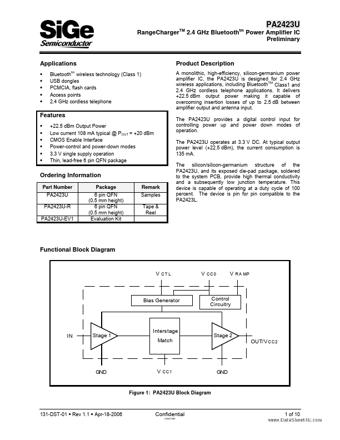

Preview of PA2423U PDF

Datasheet Details

Part number:

PA2423U

Manufacturer:

SiGe Semiconductor

File Size:

233.03 KB

Description:

2.4 ghz bluetoothtm power amplifier.
PA2423U RangeChargerTM 2.4 GHz Bluetoothtm Power Amplifier IC Preliminary Applications
*
*
*
*
* Bluetoothtm wireless technology .
