TS117 - Multifunction Telecom Switch

TS117 Description

TS117 Multifunction Telecom Switch Load Voltage Load Current Max RON TS117 350 120 35 Units V mA Ω .
TS117 is a 350V, 120mA, 35Ω 1-Form-A relay with an optocoupler in a single package.

TS117 Features

* Small 8 Pin DIP Package
* Low Drive Power Requirements (TTL/CMOS Compatible)
* No Moving Parts
* High Reliability
* Arc-Free With No Snubbing Circuits
* 3750VRMS Input/Output Isolation
* FCC Compatible
* VDE Compatible
* No EM

📥 Download Datasheet

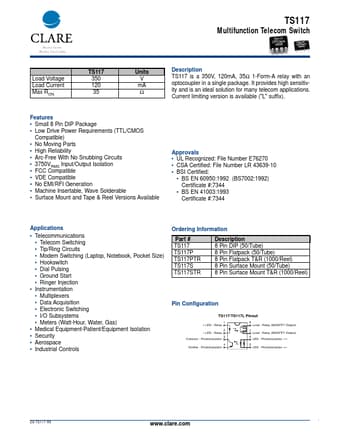

Preview of TS117 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TS117
Manufacturer
Clare Inc.
File Size
122.00 KB
Datasheet
TS117_ClareInc..pdf
Description
Multifunction Telecom Switch
