TS110-7

High surge voltage 1.25A SCR

TS110-7 Features

* On-state rms current, IT(RMS) 1.25 A

* Repetitive peak off-state voltage, VDRM/VRRM, 700 V

* Non-repetitive direct surge peak off-state voltage, 1250 V

* Non-repetitive reverse surge peak off-state voltage, 850 V

* Triggering gate current, IGT (Q1) 1

TS110-7 General Description

Thanks to highly sensitive triggering levels, the TS110-7 series is suitable for circuit breaker applications where the available gate current is limited. Such applications include GFCI (ground fault circuit interrupter), AFCI (arc fault circuit interrupter), RCD (residual current device), and RCBO.

TS110-7 Datasheet (829.81 KB)

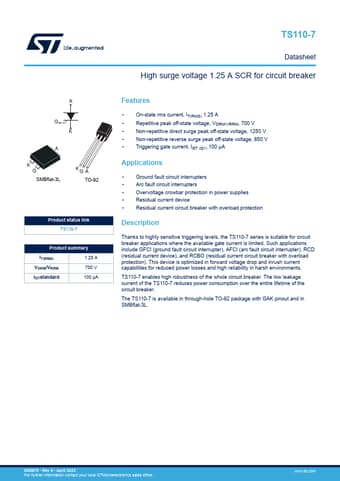

Preview of TS110-7 PDF

Datasheet Details

Part number:

TS110-7

Manufacturer:

STMicroelectronics ↗

File Size:

829.81 KB

Description:

High surge voltage 1.25a scr.
A G K A K G SMBflat-3L KG A TO-92 Product status link TS110-7 Product summary IT(RMS) 1.25 A VDRM/VRRM 700 V IGTstandard 100 µA TS110-7 D.
