TS1100

2V to 25V SOT23 Precision Current-Sense Amplifier

TS1100 Features

* Improved Electrical Performance over the MAX9938 and the MAX9634

* Ultra-Low Supply Current: 1μA

* Wide Input Common Mode Range: +2V to +25V

* Low Input Offset Voltage: 100μV (max)

* Low Gain Error:

TS1100 General Description

The voltage-output TS1100 current-sense amplifiers are form-factor identical and electrical improvements to the MAX9938 and the MAX9634 current-sense amplifiers. Consuming a very low 1μA supply current, the TS1100 high-side current-sense amplifiers exhibit a 100-µV (max) VOS and a 0.5% (max) gain er.

TS1100 Datasheet (921.11 KB)

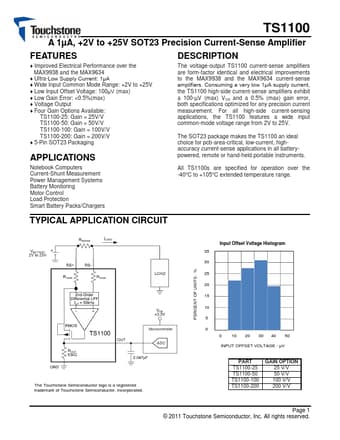

Preview of TS1100 PDF

Datasheet Details

Part number:

TS1100

Manufacturer:

Touchstone Semiconductor

File Size:

921.11 KB

Description:

2v to 25v sot23 precision current-sense amplifier.
