IAD110P - Integrated Telecom Circuits

Datasheet Summary

Description

The IAD110P Multifunction Telecom switch combines a 350V Form A relay and two optocouplers in a single package.

The relay uses optically coupled MOSFET technology to provide 1500V of input to output isolation.

Features

  • Three Functions in One Package.
  • Small 16 Pin SOIC Package (PCMCIA Compatible).
  • Bi-Directional Current Sensing.
  • Bi-Directional Current Switching.
  • Replaces up to Three or Four Components.
  • 3750VRMS Input/Output Isolation.
  • FCC Compatible.
  • No EMI/RFI Generation.
  • Machine Insertable, Wave Solderable.
  • Tape & Reel Versions Available.

📥 Download Datasheet

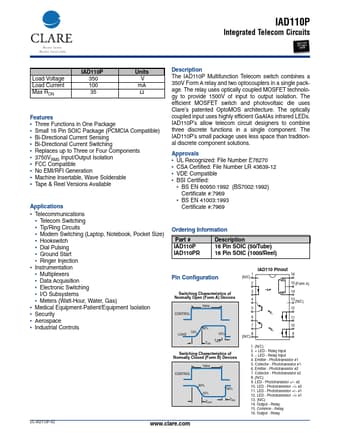

Datasheet preview – IAD110P

Datasheet Details

Part number IAD110P
Manufacturer Clare .
File Size 395.50 KB
Description Integrated Telecom Circuits
Datasheet download datasheet IAD110P Datasheet
Additional preview pages of the IAD110P datasheet.

📁 Similar Datasheet

  • IAD110P - Integrated Telecom Circuits (IXYS)
  • IAD010YGG - IAD SERIES - DUAL OUTPUT/ 12 WATT (Power-One)
  • IAD010ZGG - IAD SERIES - DUAL OUTPUT/ 12 WATT (Power-One)
  • IAD012YHH - IAD SERIES - DUAL OUTPUT/ 12 WATT (Power-One)
  • IAD012YJJ - IAD SERIES - DUAL OUTPUT/ 12 WATT (Power-One)
  • IAD012ZHH - IAD SERIES - DUAL OUTPUT/ 12 WATT (Power-One)
  • IAD012ZJJ - IAD SERIES - DUAL OUTPUT/ 12 WATT (Power-One)
Other Datasheets by Clare .

Full PDF Text Transcription

Click to expand full text
IAD110P Integrated Telecom Circuits Load Voltage Load Current Max RON IAD110P 350 100 35 Units V mA Ω Features • Three Functions in One Package • Small 16 Pin SOIC Package (PCMCIA Compatible) • Bi-Directional Current Sensing • Bi-Directional Current Switching • Replaces up to Three or Four Components • 3750VRMS Input/Output Isolation • FCC Compatible • No EMI/RFI Generation • Machine Insertable, Wave Solderable • Tape & Reel Versions Available Applications • Telecommunications • Telecom Switching • Tip/Ring Circuits • Modem Switching (Laptop, Notebook, Pocket Size) • Hookswitch • Dial Pulsing • Ground Start • Ringer Injection • Instrumentation • Multiplexers • Data Acquisition • Electronic Switching • I/O Subsystems • Meters (Watt-Hour, Water, Gas) • Medical Equipment-Patient/Equipment
