CPC1708

DC Power Relay

Clare

CPC1708 Features

* 100% Solid State

* Compact i4-PAC Power Package

* Low Thermal Resistance (0.35°C/W)

* 11.85ADC Load Current with 5ºC/W Heat Sink

* Electrically Non-conductive Thermal Pad for Heat Sink Applications

* Arc-Free With No Snubbing Circuits

* 2500V

CPC1708 General Description

Clare and IXYS have combined to bring OptoMOS® technology, reliability and compact size to a new family of High Power Solid State Relays. As part of this new family, the CPC1708 1-Form-A DC Solid State Relay employs optically coupled MOSFET technology to provide 2500Vrms of input to output isolation.

CPC1708 Datasheet (127.54 KB)

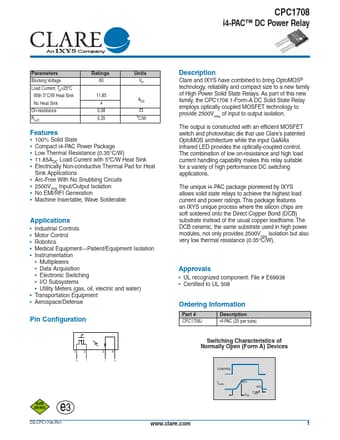

CPC1708 Datasheet Preview — Preview of CPC1708 PDF

Datasheet Details

Part number:

CPC1708

Manufacturer:

Clare

File Size:

127.54 KB

Description:

Dc power relay.
CPC1708 i4-PAC™ DC Power Relay Parameters Blocking Voltage Load Current, TA=25ºC With 5°C/W Heat Sink No Heat Sink On-resistance RθJC Ratings 60 11..
