LAA120L - DUAL POLE OptoMOS Relay

Product Overview

Clare

📥 Download Datasheet

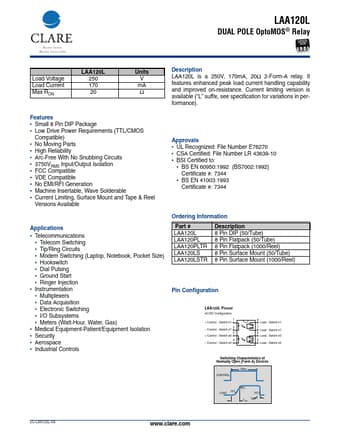

LAA120L DUAL POLE OptoMOS Relay by Clare - Datasheet Preview — Datasheet preview – LAA120L

Datasheet Details

Part number	LAA120L
Manufacturer	Clare
File Size	147.83 KB
Description	DUAL POLE OptoMOS Relay
Datasheet	LAA120L Datasheet
Additional preview pages of the LAA120L datasheet.

Product details

Description

LAA120L is a 250V, 170mA, 20Ω 2-Form-A relay.

Features

enhanced peak load current handling capability and improved on-resistance. Current limiting version is available (“L” suffix, see specification for variations in performance). Features.
Small 8 Pin DIP Package.
Low Drive Power Requirements (TTL/CMOS Compatible).
No Moving Parts.
High Reliability.
Arc-Free With No Snubbing Circuits.
3750VRMS Input/Output Isolation.
FCC Compatible.
VDE Compatible.
No EMI/RFI Generati.
