LAA108

Normally Open OptoMOS Relay

LAA108 Features

* 3750Vrms Input/Output Isolation

* Low Drive Power Requirements (TTL/CMOS Compatible)

* Higher Reliability than Electromechanical Relays

* FCC Compatible

* VDE Compatible

* No EMI/RFI Generation

* Small 8-Pin Package

* Machine Insertab

LAA108 General Description

IXYS Integrated Circuits Division's LAA108 is a 100V, 300mA, 8 dual single-pole, normally open (1-Form-A) Solid State Relay that has two independently controlled, optically coupled outputs. The output MOSFET switches and photovoltaic die employ optically coupled MOSFET technology to provide 3750 Vr.

LAA108 Datasheet (165.71 KB)

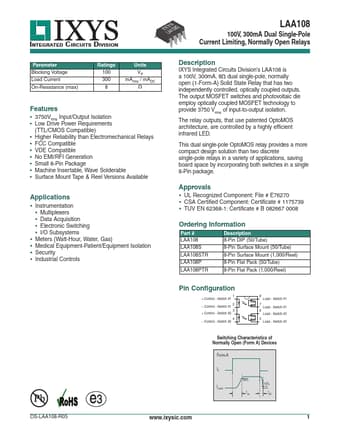

Preview of LAA108 PDF

Datasheet Details

Part number:

LAA108

Manufacturer:

IXYS

File Size:

165.71 KB

Description:

Normally open optomos relay.
