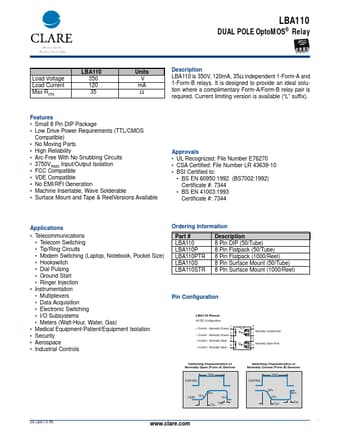

Part number: LBA110
Manufacturer: Clare
File Size: 126.00KB
Download: 📄 Datasheet
Description: DUAL POLE OptoMOS Relay
* Small 8 Pin DIP Package
* Low Drive Power Requirements (TTL/CMOS Compatible)
* No Moving Parts
* High Reliability
* Arc-Free With No Snubbing Circui.
* Telecommunications
* Telecom Switching
* Tip/Ring Circuits
* Modem Switching (Laptop, Notebook, Pocket.
LBA110 is 350V, 120mA, 35Ω independent 1-Form-A and 1-Form-B relays. It is designed to provide an ideal solution where a complimentary Form-A/Form-B relay pair is required. Current limiting version is available (“L” suffix).
Features
* Small 8 P.
