LBA120 - Single Pole OptoMOS Relay

Clare

📥 Download Datasheet

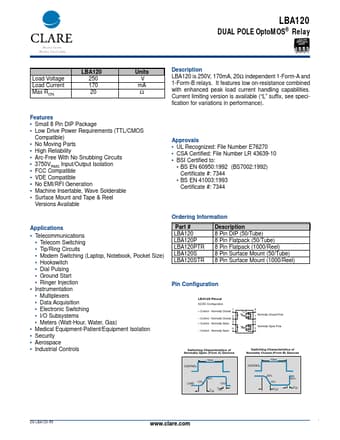

LBA120 Datasheet Preview — Preview of LBA120 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: LBA120
Manufacturer: Clare
File Size: 125.00 KB
Datasheet: LBA120_ClareInc..pdf
Description: Single Pole OptoMOS Relay

LBA120 Product details

Description

LBA120 is 250V, 170mA, 20Ω independent 1-Form-A and 1-Form-B relays.

Features

low on-resistance combined with enhanced peak load current handling capabilities. Current limiting version is available (“L” suffix, see specification for variations in performance). Features.
Small 8 Pin DIP Package.
Low Drive Power Requirements (TTL/CMOS Compatible).
No Moving Parts.
High Reliability.
Arc-Free With No Snubbing Circuits.
3750VRMS Input/Output Isolation.
FCC Compatible.
VDE Compatible.
No EMI/RFI G.
