PM1206 Datasheet - Clare

AC Power Switch

PM1206 Features

* Load Current up to 0.5A

* 600V Blocking Voltage

* 5mA Sensitivity

* Zero-Crossing Detection

* DC Control, AC Output

* Optically Isolated

* TTL and CMOS Compatible

* Low EMI and RFI Generation

* High Noise Immunity

* VD

PM1206 General Description

The PM1206 is a AC Solid State Switch using optical coupling with dual power SCR outputs to produce an alternative to optocoupler and Triac circuits. The PM1206 switches are robust enough to provide a blocking voltage of up to 600V. In addition, tightly controlled zero cross circuitry ensures switch.

PM1206 Datasheet (128.00 KB)

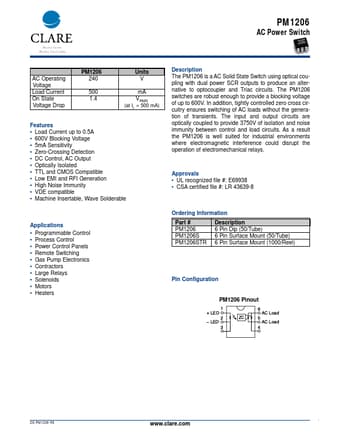

Preview of PM1206 PDF

Datasheet Details

Part number:

PM1206

Manufacturer:

Clare

File Size:

128.00 KB

Description:

Ac power switch.
