PM1204 - AC Power Switch

PM1204 Description

INTEGRATED CIRCUITS DIVISION Parameter AC Operating Voltage Load Current On-State Voltage Drop (IL=500mArms) Rating 120 500 1.4 .
The PM1204 is an AC Solid State Switch using optical coupling with dual power SCR outputs to produce an alternative to optocoupler and Triac circuits.

PM1204 Features

* Load Current up to 0.5Arms
* Blocking Voltages up to 400VP
* 5mA Sensitivity
* Zero-Crossing Detection
* DC Control, AC Output
* Optically Isolated
* Low EMI and RFI Generation
* High Noise Immunity
* VDE compatible

PM1204 Applications

* Programmable Control
* Process Control
* Power Control Panels
* Remote Switching
* Gas Pump Electronics
* Contactors
* Large Relays
* Solenoids
* Motors
* Heaters Units Vrms mArms Vrms PM1204 AC Power Switch Descrip

📥 Download Datasheet

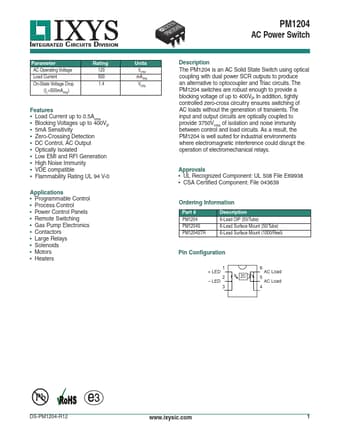

Preview of PM1204 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PM1204
Manufacturer
IXYS
File Size
128.56 KB
Datasheet
PM1204-IXYS.pdf
Description
AC Power Switch
