LC1463 Fast Response Linear Regulator

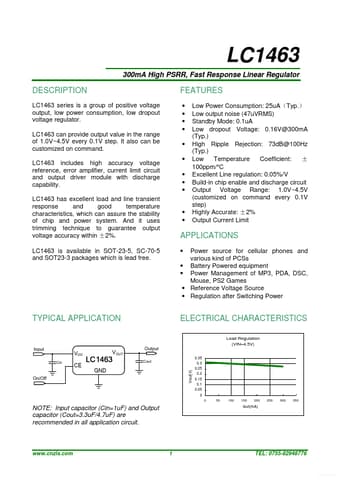

📥 Download Datasheet  Datasheet Preview Page 1

Description

LC1463 300mA High PSRR, Fast Response Linear Regulator .
LC1463 series is a group of positive voltage output, low power consumption, low dropout voltage regulator.

📥 Download Datasheet

Preview of LC1463 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LC1463
Manufacturer
Cnzls
File Size
215.32 KB
Datasheet
LC1463-Cnzls.pdf
Description
Fast Response Linear Regulator

Features

* Low Power Consumption: 25uA(Typ. ) Low output noise (47uVRMS) Standby Mode: 0.1uA Low dropout Voltage: 0.16V@300mA (Typ. ) High Ripple Rejection: 73dB@100Hz (Typ. ) Low Temperature Coefficient:

Applications

* Power source for cellular phones and various kind of PCSs
* Battery Powered equipment
* Power Management of MP3, PDA, DSC, Mouse, PS2 Games
* Reference Voltage Source
* Regulation after Switching Power TYPICAL APPLICATION ELECTRICAL CHARACTERISTICS Load Re
