LC1459 1.5A Linear Regulator

LC1459 Description

GENERAL .
LC1459 series are a group of positive voltage output, high precise, and low power consumption voltage regulator.

LC1459 Features

* Low Quiescent Current: 100uA at 5V
* High PSRR: 70dB range to 1KHz
* Low Output Noise: 44uVRMS
* Low Dropout: 300mV at 1A load
* Maximum output current: 1.5A
* Highly Accurate: ±2%

LC1459 Applications

* Reference Voltage Source
* Battery Powered Equipment
* PC Peripherals
* Wireless Devices
* Instrumentation TYPICAL APPLICATION IN Cin LC1459 VDD VOUT GND OUT Cout BLOCK DIAGRAM www. leadchip. com 1 Your final power solution ORDERING INFORMATION LC1459
* 1

📥 Download Datasheet

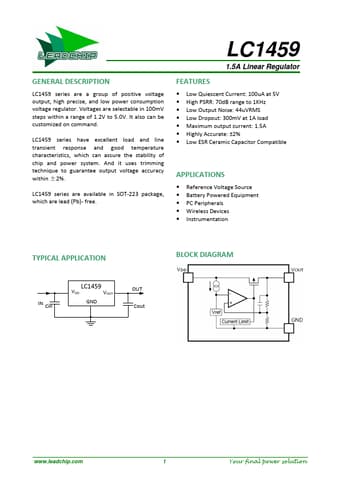

Preview of LC1459 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LC1459
Manufacturer
LEADCHIP
File Size
672.62 KB
Datasheet
LC1459-LEADCHIP.pdf
Description
1.5A Linear Regulator
