MS21075 Datasheet - Coast Fabrication

MS21075 Nutplate Series

MS21073 Nutplate Series Specifications 43 MATERIAL: Carbon steel per AMS 5085 (UNS G10500) FINISH: Cadmium plate per QQ-P-416, Type II, Class 2 and Kaylube molybdenum disulfide dry film lubricant per MIL-L-460010 PERFORMANCE: MIL-N-25027 Part Number Thread MIL-S-8879 .1120-32 UNJC-3B .1280-32 UNJC-3B .1640-32 UNJC-3B .1900-32 UNJF-3B .2500-28 UNJF-3B .3125-24 UNJF-3B A Max .448 .457 .497 .526 .603 .757 B Ref .220 .220 .220 .220 .220 .270 C ±.002 .287 .308 .331 .354 .398 .508 D Min .168 ..

MS21075 Datasheet (278.87 KB)

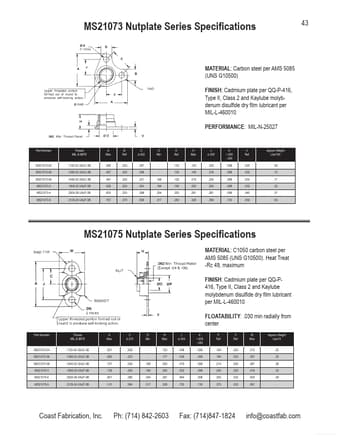

Preview of MS21075 PDF

Datasheet Details

Part number:

MS21075

Manufacturer:

Coast Fabrication

File Size:

278.87 KB

Description:

Nutplate series.
